SKU: YM6305 / YM6315 Categories: ,

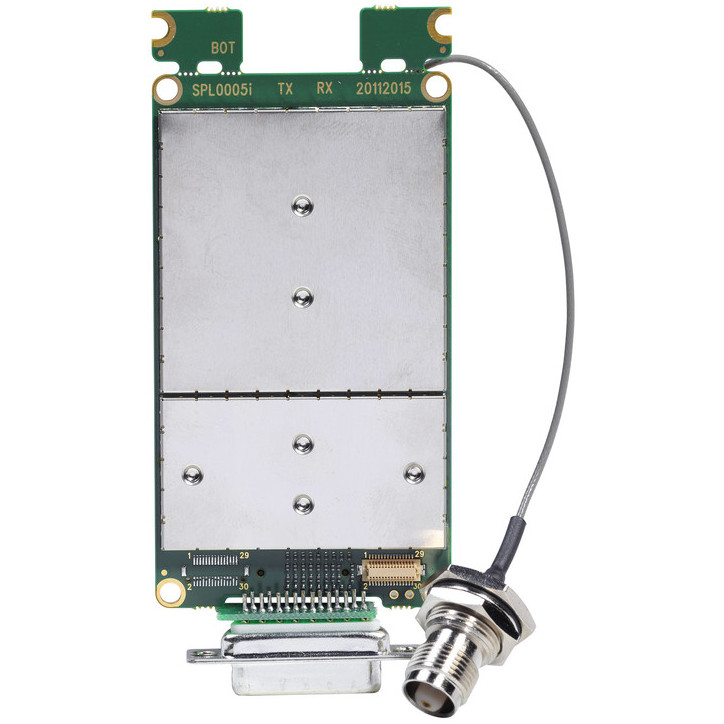

SATELLINE M3-TR1 is a versatile radio transceiver module that is available in a wide variety of configurations. A wide tuning range of 330 to 420 MHz or 403 to 473 MHz allows for a single module to be used in a wide variety of locations without need to retune the radio for changes in licencing. Available with or without a lightweight housing, the M3-TR1 can also be customized for data connector types (D15 female, 26-pin male strip or 26-pin female socket), antenna connector types (TNC, SMA, MCX or MMCX), serial interfaces (RS-232, RS-422, LVTTL or TTL), and input voltages (3 to 9 VDC or 6 to 30 VDC). Optional AES-128 encryption support adds strong protection to your data over the air, with minimal overhead.

Offering wide compatibility, the M3-TR1 is compatible with SATEL’s SATELLINE-3AS and SATELLINE-EASy radio modem family. Additional compatibility modes allow interoperability with many other manufacturer’s radio protocols including Trimble and Pacific Crest, among others. All channel spacings 12.5, 20 and 25 kHz are software-selectable and thanks to good receiver sensitivity, the output power of 1 W enables a long radio range.

Additional information

Frequency Range

403 to 473 MHz

Tuning Range

70 MHz

Channel Spacing

12.5 / 20 / 25 kHz (software selectable)

Carrier Power

100, 200, 500, 1000 mW

Receiver Sensitvity

-114 dBm @ 12.5 kHz, -111 dBm @ 25 kHz

Electrical Interface

Port 1 fixed: RS-232, Port 2 options: LVTTL, TTL or RS-232/422

Data Interface Speed

38.4 kbps

Packet Throughput

19.2kbps (25kHz channel), 9.6kbps (12.5kHz channel)


AES 128 (optional product variant)

Interface Connector

26-pin female socket, 26-pin male strip, D15 female

Operating Voltage

+3 to +9 Vdc or +6 to +30 Vdc

Power Consumption

< 1.2W RX, < 3W TX @ 0.5W, < 7W TX @ 1W, 0.12W sleep, 10 mW DTR sleep

Antenna Connector


Size (H x W x D)

3.5 in (88 mm) x 1.9 in (49 mm) x 0.35 in (9 mm)


50 g (without housing)

YM6305: M3-TR1 (see variations below)

YM6315: M3-TR1, with AES-128 encryption support (see variations below)

Numerous customizations are available for this product:

Housing: With aluminum or steel housing, or as board only.

Data connector types: D15 female, 26-pin male strip or 26-pin female socket,

Antenna connector types: TNC, SMA, MCX or MMCX

Serial interfaces: RS-232, RS-422, LVTTL or TTL

Input voltages: 3 to 9 VDC or 6 to 30 VDC.
