Description

The SATEL-B2 motherboard is designed to house SATEL radio modules, including SATEL-TR4+, SATEL-TR49, SATEL-TR489, SATEL-TR300, and SATELLINE-M3-TR9.

It regulates the supply voltage (+7…+27.5 VDC) for the radio module and provides the electrical connections by which the radio module and the user system communicate: RS232 Port1, RS232 Port2 (Diagnostics, SL commands), 1 GPO output, and 1 GPI input.

Variants:

  • Without enclosure (board-level OEM variants): MP1 / MP2 / MP3

  • With enclosure (enclosed assemblies): ME1 / ME2 / ME3

SATEL-TR4+ (or SATEL-TR489) radio module attached on SATEL-B2 motherboard is essentially backwards compatible to the widely used SATELLINE-M3-TR1 radio module – the connectors are identical with the same pinout. Likewise, SATEL-TR489 / SATEL-B2 motherboard combination is backwards compatible with SATELLINE-M3-TR1 869.

Technical Specifications

Compatible radio modules

  • SATEL-TR4+

  • SATEL-TR49 *)

  • SATEL-TR489

  • SATEL-TR300 *)

  • SATELLINE-M3-TR9 *)

Power / interfaces

  • SATEL-B2 motherboard regulates the supply voltage (+7…+27.5 VDC) for the radio module

  • RS232 Port1, RS232 Port2 (Diagnostics, SL commands)

  • 1 GPO output

  • 1 GPI input

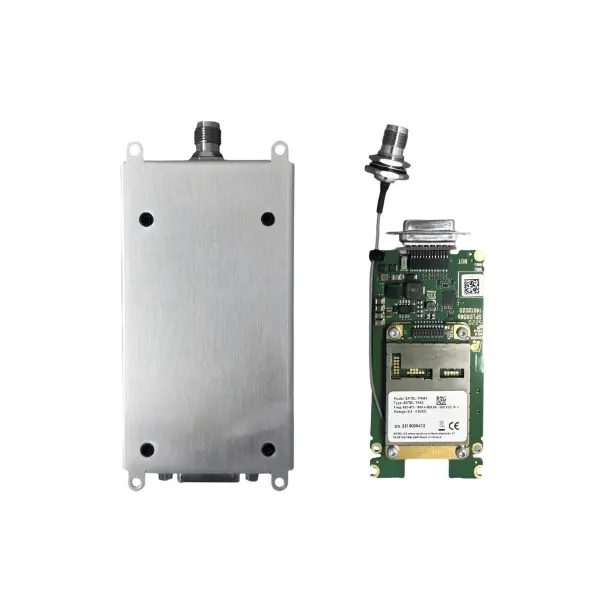

Satel B2 Motherboard without Enclosure

Mechanical assembly (incl. cooling elements ME0909, ME0910 and M2.5×6 screws, 4 pcs) without enclosure

  • MP1 = Horizontal 26-pin female row connector

  • MP2 = Horizontal 26-pin female row connector + D15 adapter

  • MP3 = Vertical 26-pin male row connector

Satel B2 Motherboard with Enclosure

SATEL product page enclosure variants:

  • ME1 = With ears, with TNC antenna connector

  • ME2 = With ears, with TNC antenna connector and DIN clip

  • ME3 = With ears, with BNC antenna connector and DIN clip

Antenna cable assembly

  • TNC antenna connector

  • BNC antenna connector

  • SMA antenna connector

  • MCX antenna connector

  • MMCX antenna connector

*) Ask availability

Applications – best uses

  • Board-level integration inside host devices (board-level OEM variants)

  • Enclosed assemblies when an aluminum enclosure variant is needed

  • Use cases where RS232 and simple GPIO (1 GPI / 1 GPO) are needed between the radio module and the user system

SATEL-B2 Motherboard with Enclosure Datasheet
