Description

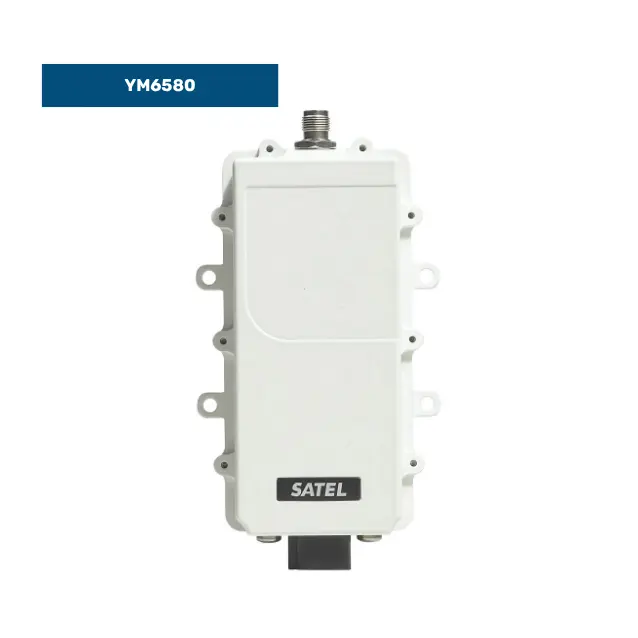

This radio brings you the highest level of water and dust proofing, IP69K, for both the housing and the connectors. Able to withstand even high pressure, high temperature water jets, this radio is not only weather proof, but can also resist pressure washing when mounted to vehicles, equipment or buildings. SATEL’s EASy-Proof is based on the SATELLINE-EASy 1W UHF radio module, a time-tested, highly robust radio technology. This radio is ideal for use on any equipment that is exposed to intense weather, marine environments, or high-pressure washing without the need to worry about the sensitive electronics inside. Optional AES-128 encryption support adds strong protection to your data over the air, with minimal overhead.
Compatibility spans a wide variety of SATEL modems with the 3AS/EASy protocol, with additional compatibility modes allowing for inter-operation with other radios including Pacific Crest, Trimble, and others.
Technical Specifications
| Frequency Range | 330 to 420 or 403 to 473 MHz |
|---|---|
| Tuning Range | 90/70 MHz |
| Channel Spacing | 12.5 kHz / 20 kHz / 25 kHz (Selectable) |
| Frequency Stability | < 1 kHz |
| Type of Emission | F1D |
| Communication Mode | Half-Duplex |
| Modulation | 4FSK, GMSK |
| Spurious Emission | < -100 dBm (RX), < -80 dBm on 3rd harmonics @ 1215 – 1240 MHz (TX |
| Carrier Power | 100, 200, 500, 1000 mW |
| Carrier Power Stability | < ± 1.5 dB |
| Receiver Sensitvity | -114 dBm @ 12.5 kHz -111 dBm @ 25 kHz (BER < 10 E-3, FEC ON) |
| Adjacent Channel Selectivity | (FEC ON) > 47 dB @ 12.5 kHz, > 52 dB @ 25 kHz |
| Intermodulation Attenuation | > 60 dB |
| Electrical Interface | RS-232 |
| Interface Connector | Deutsch DT04-6P-CL09 |
| Data Interface Speed | 300 – 38400 bps |
| Packet Throughput | up 9.6/19.2kbps (12.5kHz/25kHz channels) |
| Encryption | AES-128 (optional product variant) |
| Data Format | Asynchronous data |
| Operating Voltage | 6 – 30 VDC |
| Operating Temperature Range | –25 to +55 °C (complies with standards), -30 to +65 °C (Functional), -4 |
| Antenna Connector | TNC |
| IP Classification | IP69K |
| Size (H x W x D) | 176 x 95 x 42 mm |
| Weight | 460 g |
