Description
The Satel RTK Bridge Kit is a rugged and reliable RTK Kit designed to extend GNSS RTK correction signal coverage in environments where cellular connectivity is weak or unavailable. This solution eliminates the need for a local RTK base station, making it a cost-effective option for achieving centimeter-level accuracy in off-road operations.
It is available in Standard and Extended versions:
-
Standard version offers several kilometers of coverage with 1W TX power.
-
Extended version supports up to several tens of kilometers with 35W TX power (depending on local regulations).
Built to withstand harsh field conditions, this kit supports mixed fleets and is designed for easy installation on off-highway vehicles used in construction, mining, agriculture, and surveying.
Technical Specifications

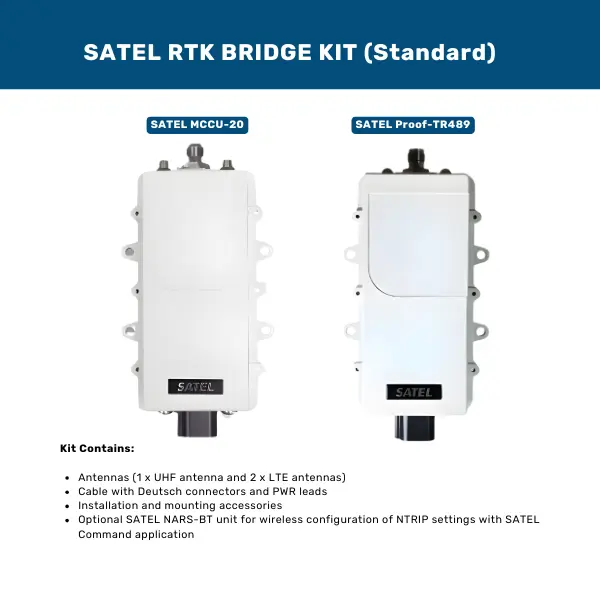

Standard Kit Includes:
Standard kit allows users to achieve several kilometers of coverage with standard 1W TX power
-
SATEL MCCU-20
-
SATEL CONNECT global connectivity service
-
Built-in NTRIP Client, supports RTCM 2.x, 3.x
-
SATEL Proof-TR489, standard range with 1W TX power
-
Antennas (1 x UHF antenna and 2 x LTE antennas)
-
Cable with Deutsch connectors and PWR leads
-
Installation and mounting accessories
-
Optional SATEL NARS-BT unit for wireless configuration of NTRIP settings with SATEL Command application
Extended Kit Includes:
Extended kit allows users to achieve even several tens of kilometers coverage with 35W TX power
-
SATEL MCCU-20
- SATEL CONNECT global connectivity service
- Built-in NTRIP Client, supports RTCM 2.x, 3.x
- SATEL-EASy Pro+, extended range with 35W* TX power
- Antennas (1 x UHF antenna and 2 x LTE antennas)
- Cable with ODU 8-pin / Deutsch connectors and PWR leads
- Installation and mounting accessories
- Optional SATEL NARS-BT unit for wireless configuration of NTRIP settings with SATEL Command application*Local regulations might limit the maximum TX power, please check from the local authorities.
Applications – Best Uses
-
Construction machine automation
-
Mining operations in remote areas
-
Agricultural machinery with GNSS systems
-
Surveying jobs beyond cellular range
-
Any off-highway vehicle needing precise GNSS corrections
