Description

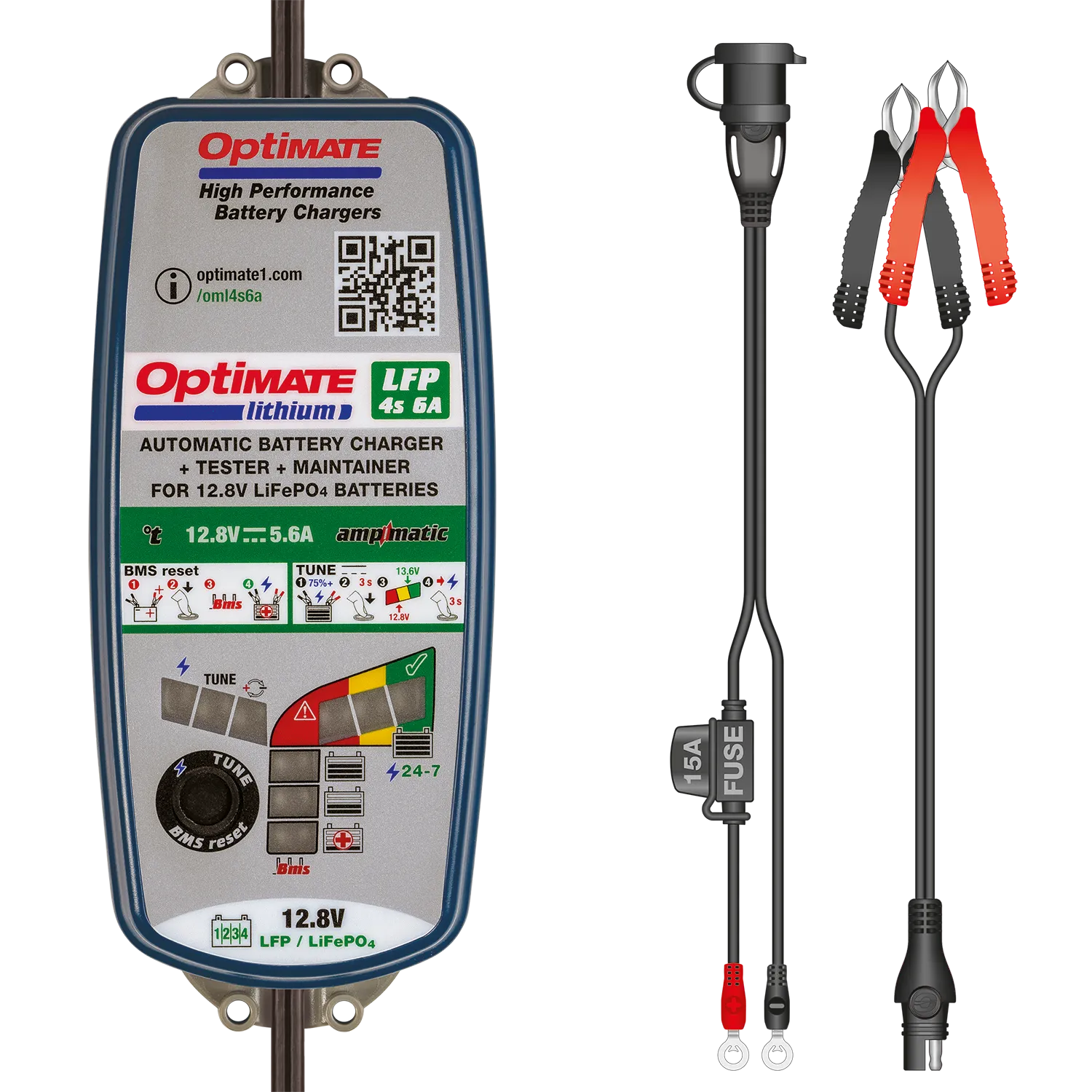

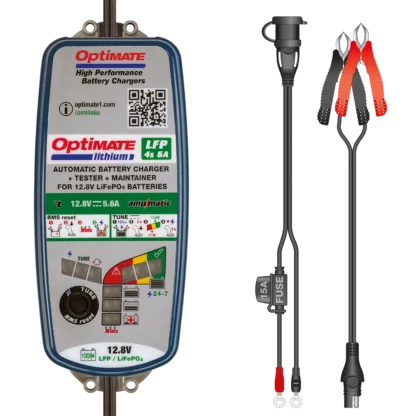

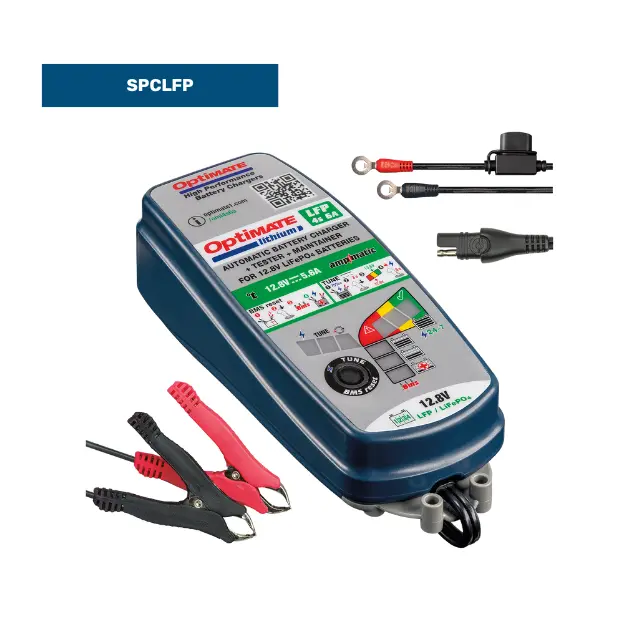

The SPCLFP 12.8 V 6 A Lithium Battery Charger is a reliable, fully automatic Lithium battery charger designed specifically for 12.8 V (nominal) LiFePO4 (LFP) batteries. With up to 6 A charging current and a 10-step AmpMatic charging program, it safely revives deeply discharged batteries (down to 0.5 V), maintains optimal state‑of‑charge, checks battery health, and adjusts current to match battery size (3–72 Ah). Weatherproof with full electronic protection, the charger is safe to leave connected indefinitely. It supports tuning and ECU programming with stable 13.6 V auxiliary output.
Technical Specifications
|
Battery Type |
LiFePO4 / Lithium Iron Phosphate (4‑cell ~12.8 V nominal) |
|
Capacity Range |
3 Ah to 72 Ah |
|
Charging Current |
Up to 6 A (Adaptive AmpMatic current) |
|
Voltage Range |
0.5 V recovery up to 14.4 V peak (nominal charge ~12.8 V) |
|
Charging Program |
Fully automatic, 10-step sequence including recovery, test, balance |
|
Health Monitoring |
Tests charge acceptance and warns on bad cells |
|
Stand-By Power Use |
Less than 0.5 W in maintenance mode |
|
Operation Temp Range |
Designed for indoor/outdoor use down to –40 °C / –40 °F |
|
Protection Features |
Reverse-polarity, short-circuit, overcharge, and spark suppression |
|
Auxiliary Tune Mode |
13.6 V output for ECU programming and vehicle tuning |
|
Input Voltage |
Global AC input 100–240 VAC, 50–60 Hz (plug type variant by region) |
|
Weatherproof Rating |
IP54 or similar sealed casing |
|
Warranty |
Typically 3-year limited replacement warranty |
|
Efficiency |
CEC-listed high efficiency including 24/7 safe maintenance |
