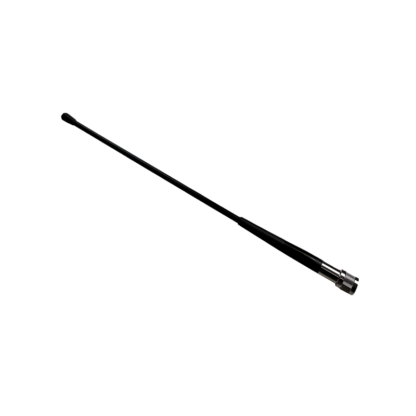

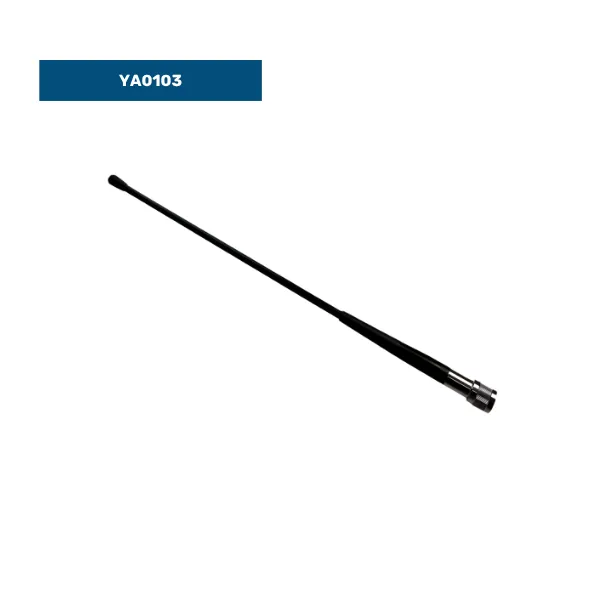

Rubber Whip Antenna for Radio (440-470 MHz) – UHF

SKU: YA0103 Category:

Description

  • Highly elastic, corrosion-proof metal shaft in particularly resistive black plastic cover
  • Connector: Black chromiumplated brass
  • Insulant: Polycarbonate
  • 440 – 470 MHz
  • 4 dB gain – Half wave decoupled antenna
  • TNC male connector

Technical Specifications

Frequency Range 440 – 470 MHz
Connector Type TNC
Length 300 mm
Weight Approx. 50 g
Features Without joint
Impedance 50 Ω
Gain 4 dB – (ref. to quarter-wave whip)
Maximum load 20W(at 50°C Ambient Temperature)
Swivelling range of the joint Continuous ±125°
Material Highly elastic, corrosion-proof metal shaft in particularly resistive black plastic cover.
Connector: Black chromium plated brass.
Insulant: Polycarbonate
