Description

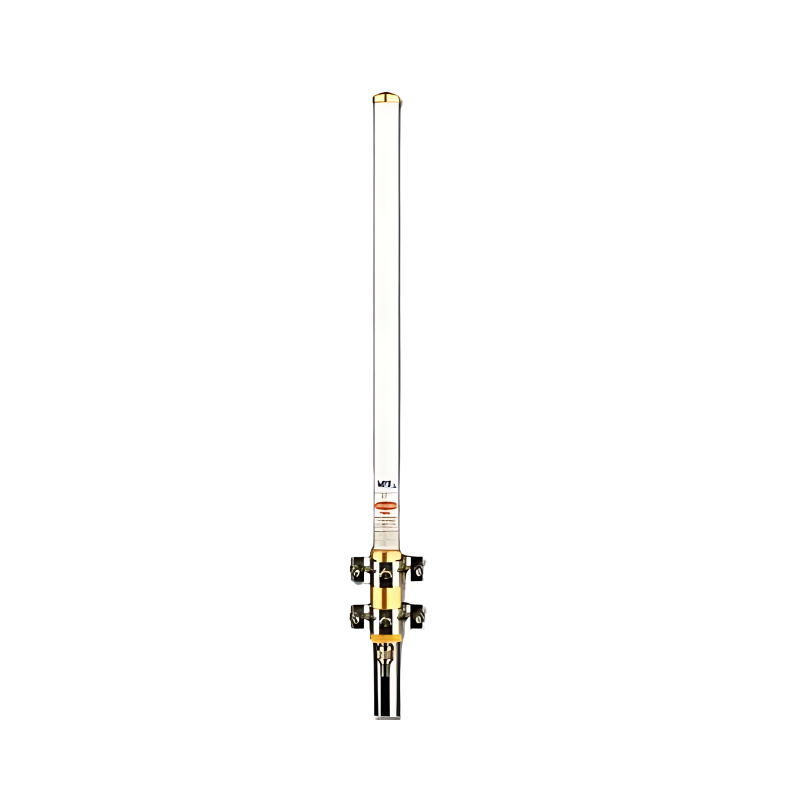

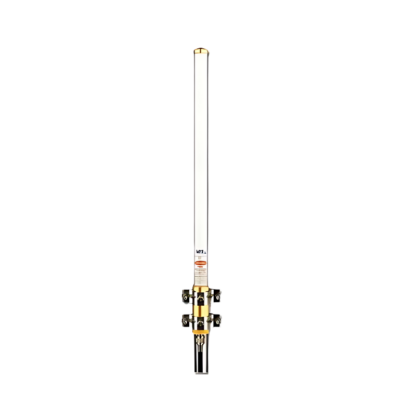

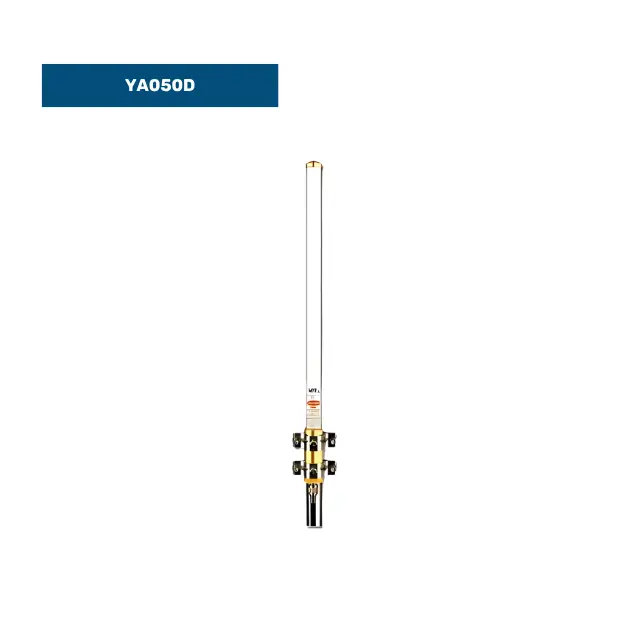

Increase your range with this 5 dBd / 7.2 dBi fiberglass omnidirectional antenna. Ideal for use in a fixed position base station, or in marine applications. N-Male antenna cable connection. Rated for up to 125MPH winds.
Technical Specifications
|
Frequency Range |
450-470 MHz |
|
Impedance |
50 Ohm |
|
Antenna Gain |
5 dBd / 7.2 dBi |
|
Antenna Length |
75 in |
|
Maximum Load |
100 W |
|
RF Connector Type |
N female |
|
Weight |
6 lbs |
|
Antenna Width |
1.3 in (3.3cm) |
|
Transmitter Power |
Max transmitted power 100W |
|
FM2 Bracket |
2 Piece Aluminum Base Station Antenna Mounting Bracket |
