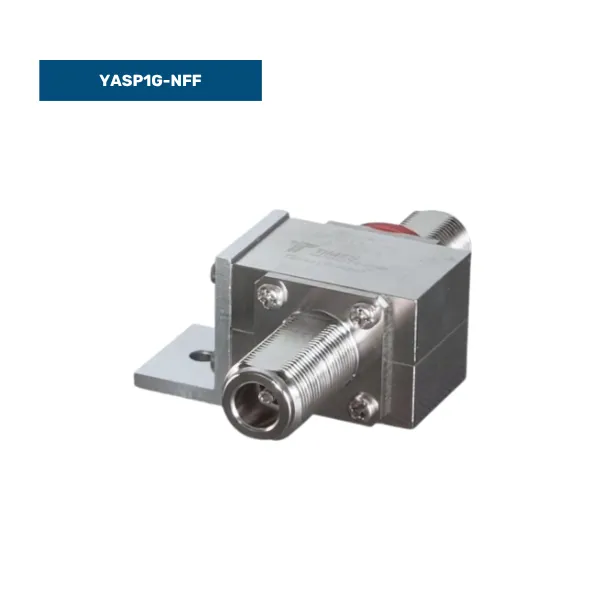

Description
- Maximum Surge Protection
- Multi-Strike Capability
- Broadband Performance from 20MHz up to 1000MHz
- Exceptional RF Characteristics
- Solid Brass Construction for Durability and Long Life
- Universal Grounding Bracket for Flange or Bulkhead Installations
Technical Specifications
| Impedance | 50 ohms |
|---|---|
| Frequency Range | 20-1000 MHz |
| VSWR | <1.1:1 |
| Return Loss | <-26 dB |
| Insertion Loss | <0.1 dB |
| Impulse Discharge Current | 10KA multiple |
| Turn-on Voltage | 600V +/- 20% |
| Turn-on Time | 2.5ns for 2kV/ns |
| Protection Circuit | DC Blocked |
| Temperature Range | -40 to +85° C |
| RoHS Compliant | Yes |
| Mating Life Cycle | >500 |
| Recommended Coupling Nut Torque | 7 to 10 lb-in |
| Body | Brass, White Bronze |
| Inner Conductor Male | Brass, Silver |
| Inner Conductor Female | Phosphor Bronze, Silver |
| Outer Conductor | Brass, White Bronze |
| Coupling Nut | Brass, White Bronze |
| Insulator | PTFE |
| Weight | 1 lbs |
