Teltonika RUT955 – LTE Dual-SIM Router

SKU: RUT955 Category:

Description

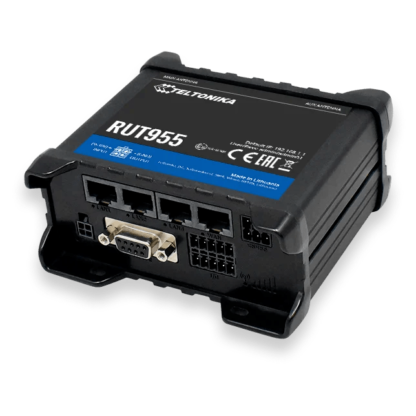

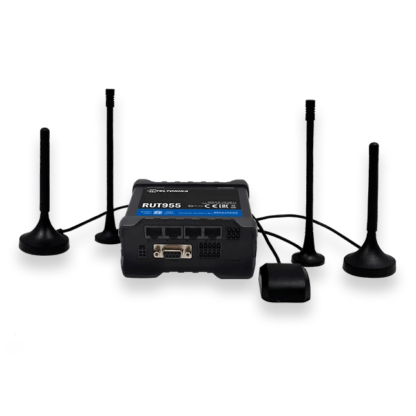

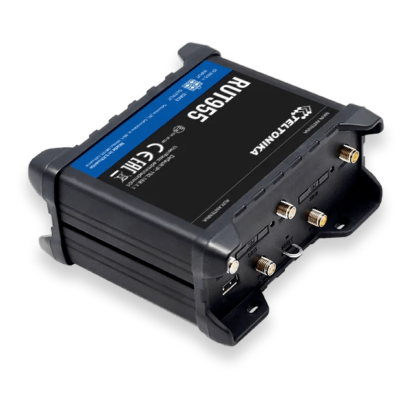

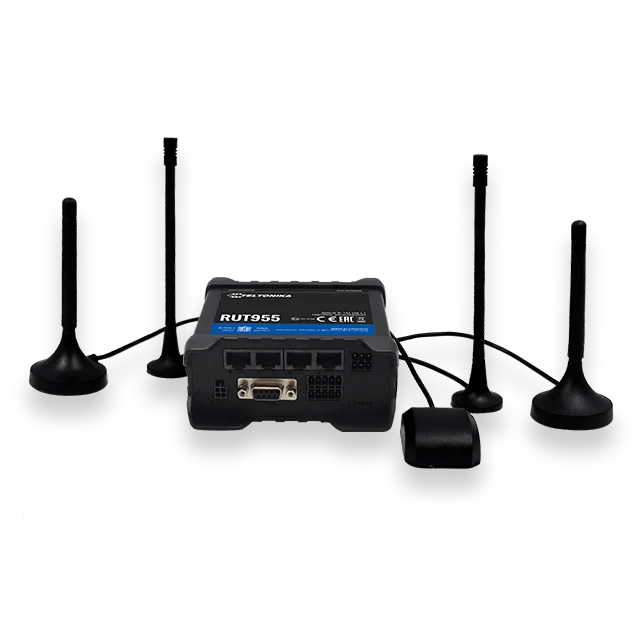

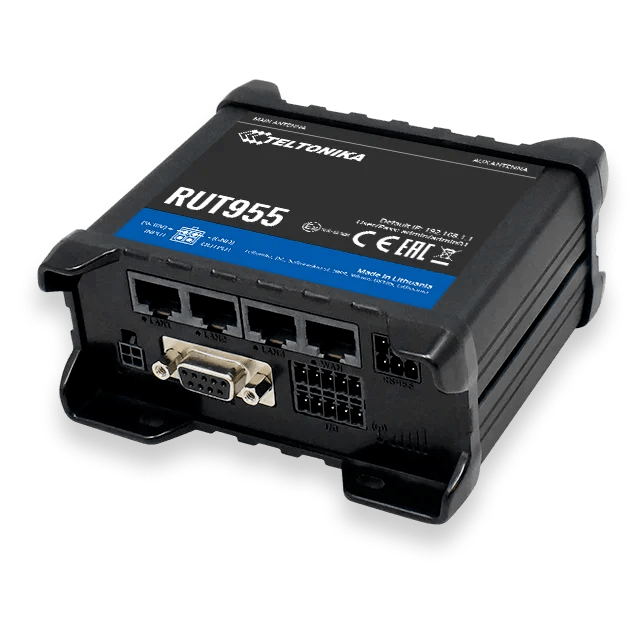

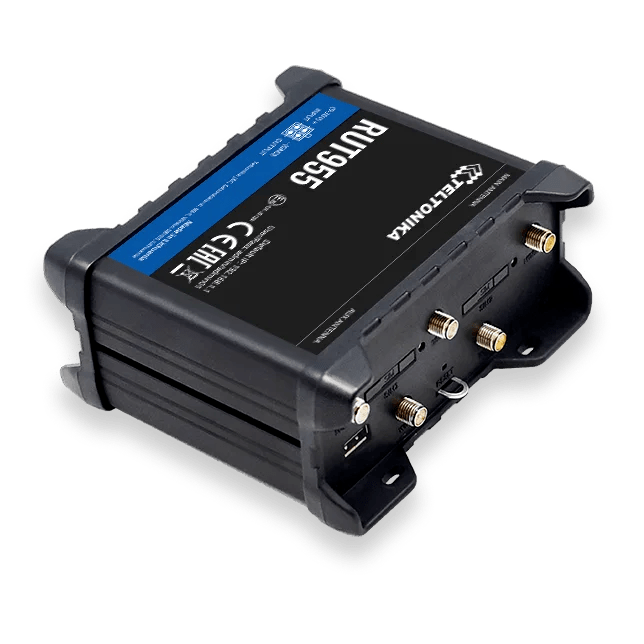

This fully-featured, affordable LTE router includes 4x Ethernet ports, RS232, RS485, and IO support (Digital & Analog). GPS and WiFi (802.11b/g/n) is also included on all models at no additional cost. Dual SIM support allows for fail-over between multiple carriers for maximum uptime and reliability.

OpenVPN, IPSec (IKEv1 and IKEv2), GRE, PP2P, and L2TP are available for secure VPN tunnels. SNMP, MQTT and Modbus are available for monitoring. Numerous networking features, including firewalling, routing, VLANs and more are also available.

North American model supports LTE bands 2/4/12, ideal for use on AT&T and T-mobile in the US, including rural areas. Fallback to 3G is also available where LTE isn’t deployed. A Verizon model is also available supporting LTE bands 4 and 13.

Additional information

Cellular Standard

3G/4G LTE

Frequency Range

FDD-LTE: B2 (1900 MHz)/B4 (1700 MHz)/B12 (700 MHz), 3G (WCDMA): B2 (1900 MHz)/B4 (1700 MHz)/B5 (850 MHz)

Antenna Diversity

Cellular: Yes, WiFi: Yes

Antenna Connector

2x SMA (Cellular), 1x SMA (GNSS), 2x RP-SMA (WiFi)

WiFi

IEEE 802.11b/g/n, Access Point (AP), Station (STA)

Data Interface Speed

Ethernet: 10/100 Mbps, Serial RS232/485: Up to 115.2kbps

Digital Inputs

0 – 3 V digital input, 0 – 30 V digital galvanically isolated input, 0 – 24 V analog input

Analog Inputs

0-24V (can also be used in current mode for 4-20mA)

Digital Outputs

30V 250 mA digital open collector output, 40V 4A SPST relay output

Interface Connector

RJ45 (Ethernet), D9 (RS232), 6-pin (RS485), 10 pin (IO)

Operating Voltage

+ 9 to + 30 Vdc

Operating Temperature Range

-40 to +75C

Construction

Aluminum and Plastic Housing

IP Classification

IP30

Size (H x W x D)

80 x 106 x 46 mm

Weight

265g

RUT955 J***** North America (AT&T, T-Mobile)
  • FDD-LTE: B2 (1900 MHz)/B4 (1700 MHz)/B12 (700 MHz)
  • WCDMA: B2 (1900 MHz)/B4 (1700 MHz)/B5 (850 MHz)
RUT955 K***** North America (Verizon)
  • FDD-LTE: B4 (1700MHz), B13 (700MHz)

International variants are available for use in Europe, the Middle East, Africa, Korea, Thailand, India, Australia, South America, New Zealand, Taiwan, and Japan.

RUT955 Datasheet v2.8
